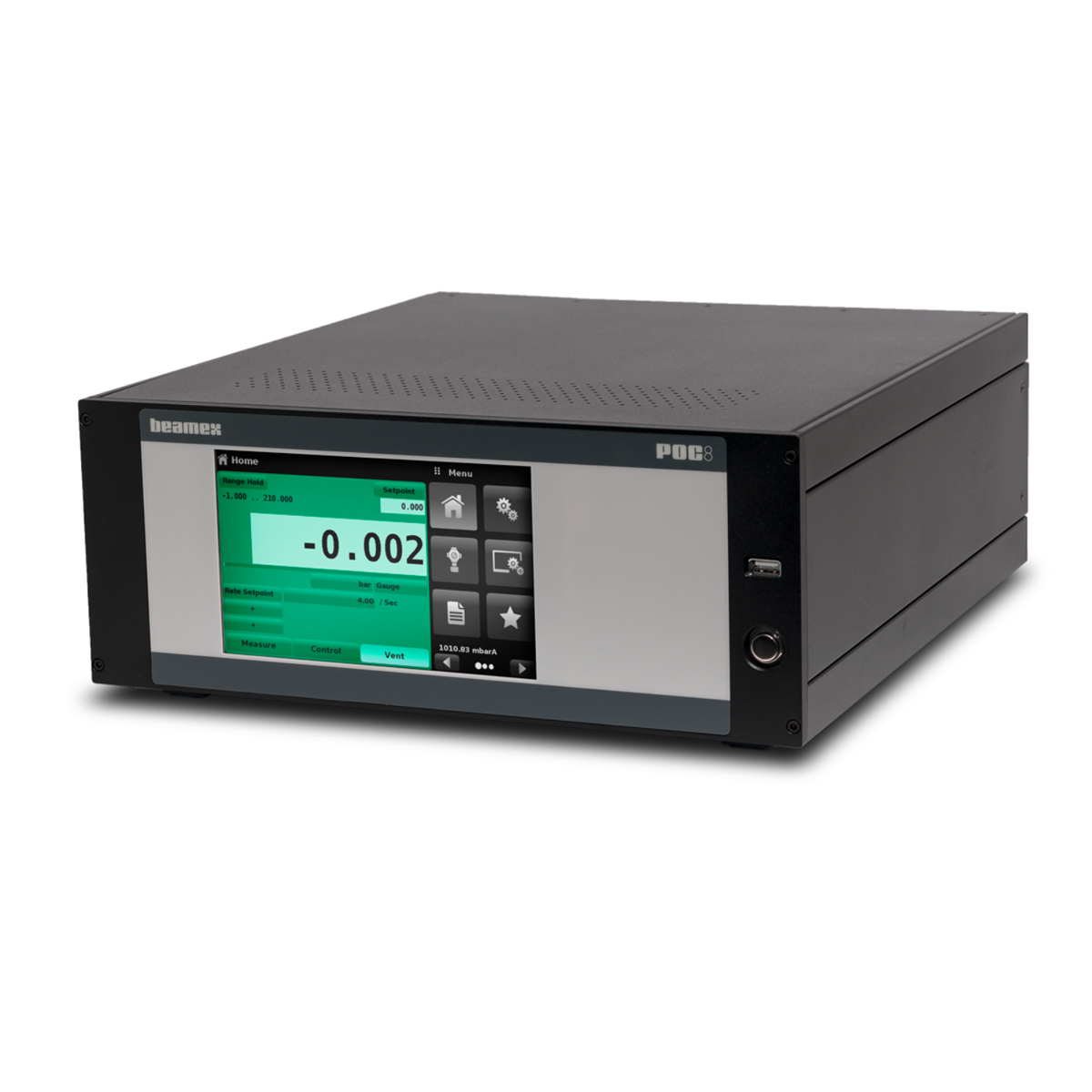

Beamex POC8 automatic pressure controller

Beamex POC8 automatic pressure controller

The Beamex POC8 is an accurate and easy-to-use automatic pressure controller. It has several pressure ranges, from vacuum to 210 bar (3045 psi). The POC8 can be equipped with 1 or 2 internal pressure measuring ranges and a barometric module.

The POC8 has an integrated calibration system. It can be used as an independent pressure controller, or as part of the Beamex integrated calibration solution.

Using the POC8 with the calibrators of the Beamex MC6 family, and the Beamex CMX calibration management software, you will have a fully automated and integrated solution to perform, document and manage calibrations in a precise, simple and efficient manner.

The POC8 can be used as a tabletop device. With the panel mounting kit, the POC8 can be installed in the Beamex MCS200 calibration workstation to obtain a professional solution for workshop or laboratory. Both versions have a user interface via touch screen and color with menus in multiple languages.

Download catalog

Product Description

  • Versatile and easy to handle
  • It has an integrated calibration system
  • Can be used desktop or panel-mounted

APPLICATIONS

  • Pressure measurement and calibration
  • Sectors of activity: Oil platforms, Oil refineries, drilling rigs and process plants, Pipelines and distribution centers, Chemical and petrochemical plants, Power plants

CHARACTERISTICS

  • Large 7-inch full color resistive touchscreen display
  • Interface available in multiple languages
  • All connections are provided with low or high pressure adapters

Technical specifications
Pantalla 7″LCD module, full color display
Touch panel Resistive touch screen
Teclado Resistive touch screen
Backlighting LED backlighting, adjustable brightness
Peso 12.7 kg (28 Ib) (with all modules installed)
dimensions Portable: 346 (w) x 145 (h) x 388 (d) mm
Panel mounting 400 (w) x 200 (h) mm
Connection USB
Energy consumption max 150 VA
Connections Pressure supply, vacuum supply, measurement/control. All 7/16-20 F UNF connections, provided with low or high pressure adapters
Measuring range 10 bar 100 bar 210 bar
Uncertainty at 1 year 0.02% de span (rango activo)
Pressure units 38 units and two user programmable units
Control stability 0.005% de Span (rango activo)
Volume Testing 0…1,000 ccm
Pressure media Dry, clean air or nitrogen
Overpressure protection Fixed safety relief valve
Resolution 4 to 6 digits
Max. overpressure Supply port 110% FS. Measuring / control port: 105% FS
Supply pressure range Maximum 110% FS of the control range. Minimum 20 psi (1.38 bar) above required controlled pressure
Operating temperature de 15 a 45 °C
Warranty 2 years
