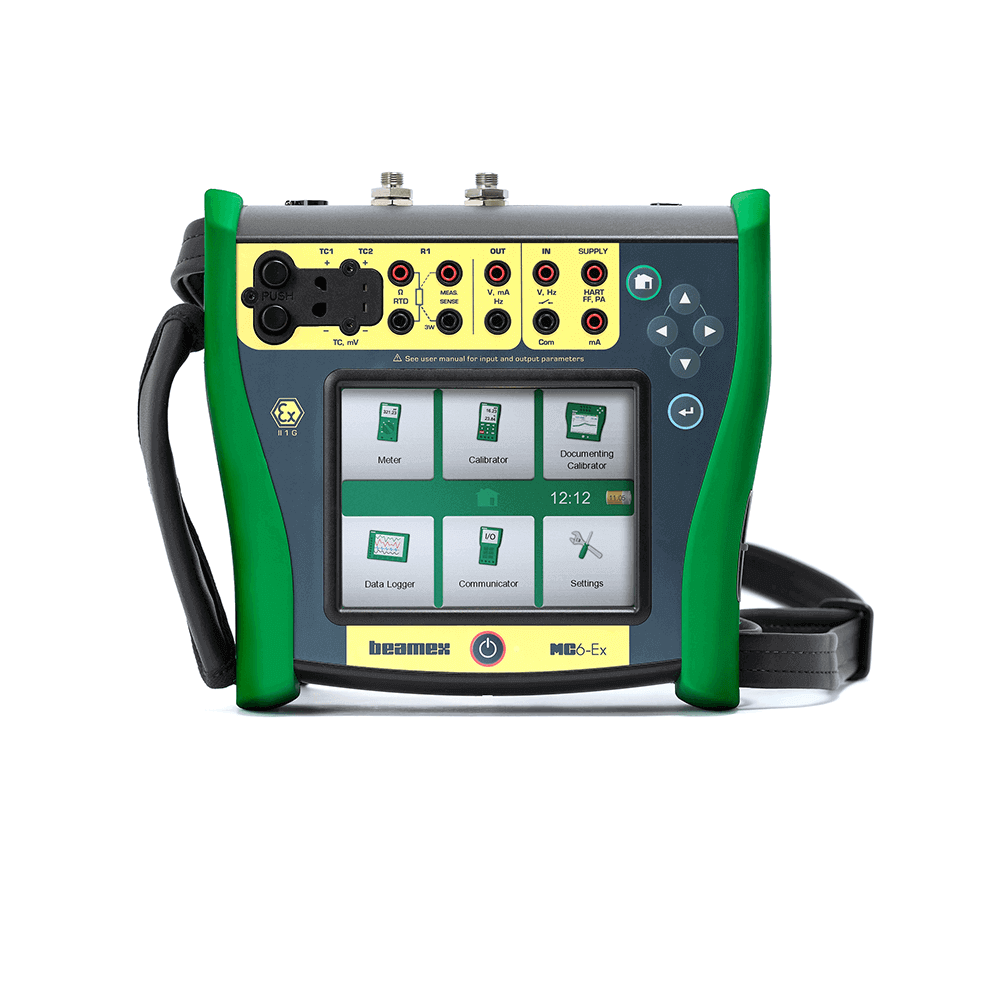

Intrinsically safe communicator and gauge Beamex MC6-Ex

The Beamex MC6-Ex is an advanced calibrator and communicator, highly accurate with exceptional functionality. It is a multifunction calibrator-documenter and communicator, which offers the capability to calibrate pressure, temperature and electrical signal measuring instruments. It also contains a field communicator for HART, Foundation Fieldbus and Profibus PA instruments.

MC6-Ex is an IEC and ATEX certified calibrator and can be used in any Ex zone / Ex division, even in the most demanding zones (Zone 0 / Division 1). The certification classification is Ex II 1 G and Ex ia IIC T4 Ga.

Its rugged, dust- and water-resistant IP65 rated housing, along with its ergonomic design and ease of use make the MC6-Ex an ideal device for field use.

The MC6-Ex communicates with the Beamex calibration management software, which allows fully automated calibration and documentation without the use of paper. MC6-Ex can also be part of the paperless integration with the customer’s ERP system.

Download brochure

Translated with www.DeepL.com/Translator

Product Description

  • Versatile and easy to handle
  • It is a multifunction calibrator-documenter and communicator
  • Contains a field communicator for HART, Foundation Fieldbus and Profibus PA instruments

APPLICATIONS

  • Calibration of pressure, temperature and electrical signal measuring instruments
  • Sectors of activity: Oil platforms, Oil refineries, drilling rigs and process plants, Pipelines and distribution centers, Chemical and petrochemical plants, Power plants

CHARACTERISTICS

  • Can be used in any zone/division Ex
  • Multilingual user interface
  • Robust IP65 rated, dust and waterproof housing

Technical specifications
Screen Screen of 5.7 inches in backlit and tactile color
Power supply Internal power supply for powering a loop/instrument
Measuring modules Up to three internal pressure measuring modules and connection for external modules
Battery Intelligent replaceable battery
Communicator Integrated field communicator
Capacities Ability to document calibrations and a data record
Communication Communication with pressure controllers and dry temperature blocks in a safe area
Pressure measurement Internal/external pressure modules
Voltage measurement ± 500 mV y ± 30 VDC
Current measurement ± 100 mA (internal or external supply)
Frequency measurement 0 … 50 kHz
Pulse count 0 … 10 Mpulse
Voltage generation ± 500 mV y -1.5 … 10.5 VDC
Power generation 0 … 25 mA (assets / liabilities, i. e. internal or external supply)
Resistance measurement Two simultaneous channels  (0 … 4 kΩ)
RTD Measurement Two simultaneous channels
TC measurement Two simultaneous channels (universal connector / mini-plug)
Simulations RTD simulation, TC simulation, resistance simulation (0… 4 k?)
Frequency generation 0 … 3 kHz
Click Queue Generation 0 … 10 Mpulse
Warranty 1 año
